CFG Industrial DY16 1-Ton Kubota Diesel Mini Excavator
🛡️30-Day GuaranteeRefund or Exchange🚜Kubota D722 Diesel10.2 kW Rated Output🚚Free Freight ShippingHeavy-Equipment Delivery
Reliable Kubota Diesel Power in a Narrow One-Ton Profile

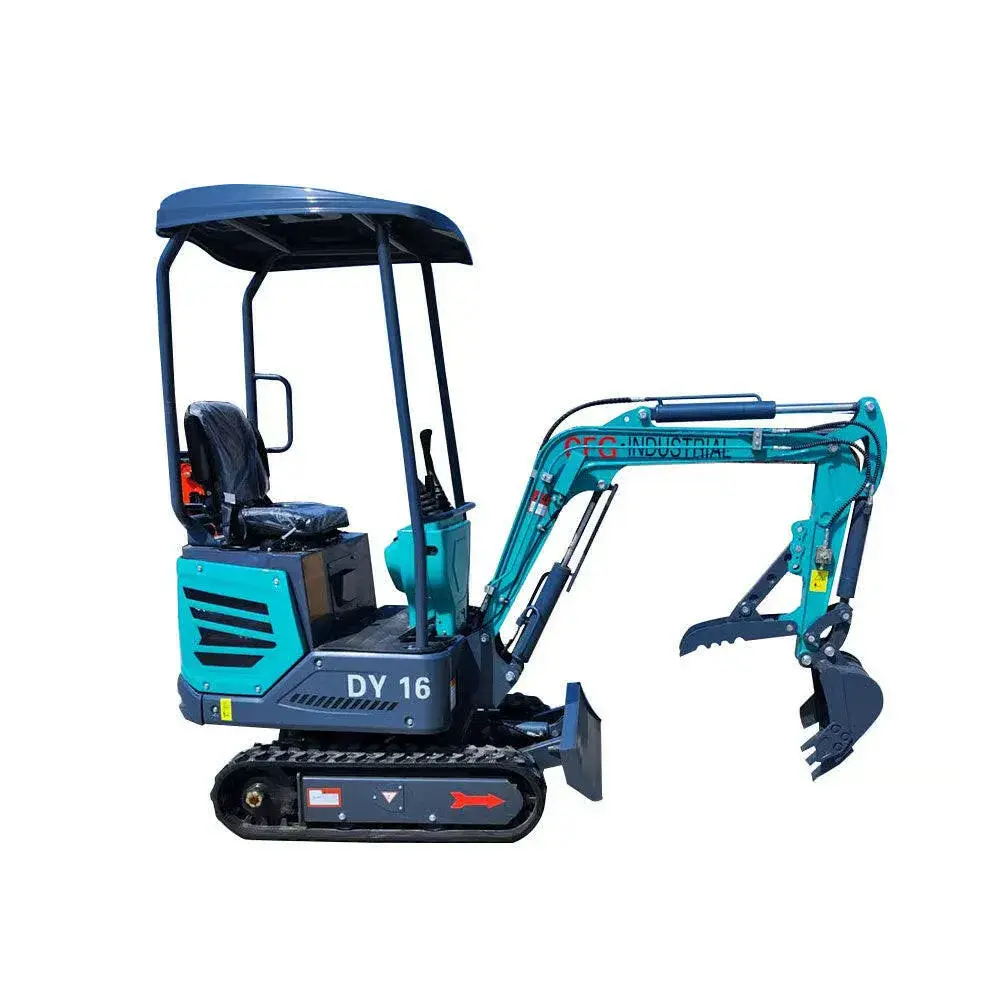

The CFG Industrial DY16 is a compact mini excavator powered by a Kubota D722-E4B-2FM-1 diesel engine. With a 930 mm overall width, rubber tracks, hydraulic dozer blade, 360-degree slewing platform, and 1,721 mm maximum digging depth, it is designed for landscaping, trenching, drainage, property maintenance, foundation preparation, and confined-site excavation.
Key Highlights & Capabilities
Kubota Diesel Engine: The D722-E4B-2FM-1 delivers 10.2 kW at 2,500 RPM and maximum torque of 42.9 N·m.
Compact 930 mm Width: Helps the machine pass through narrow access points and confined work areas.
Maximum Digging Depth: Reaches 1,721 mm for trenching, drainage, and landscaping applications.
Extended Ground Reach: Provides a maximum ground-level digging distance of 2,938 mm.
Hydraulic Dozer Blade: Supports grading, backfilling, leveling, and machine stabilization.

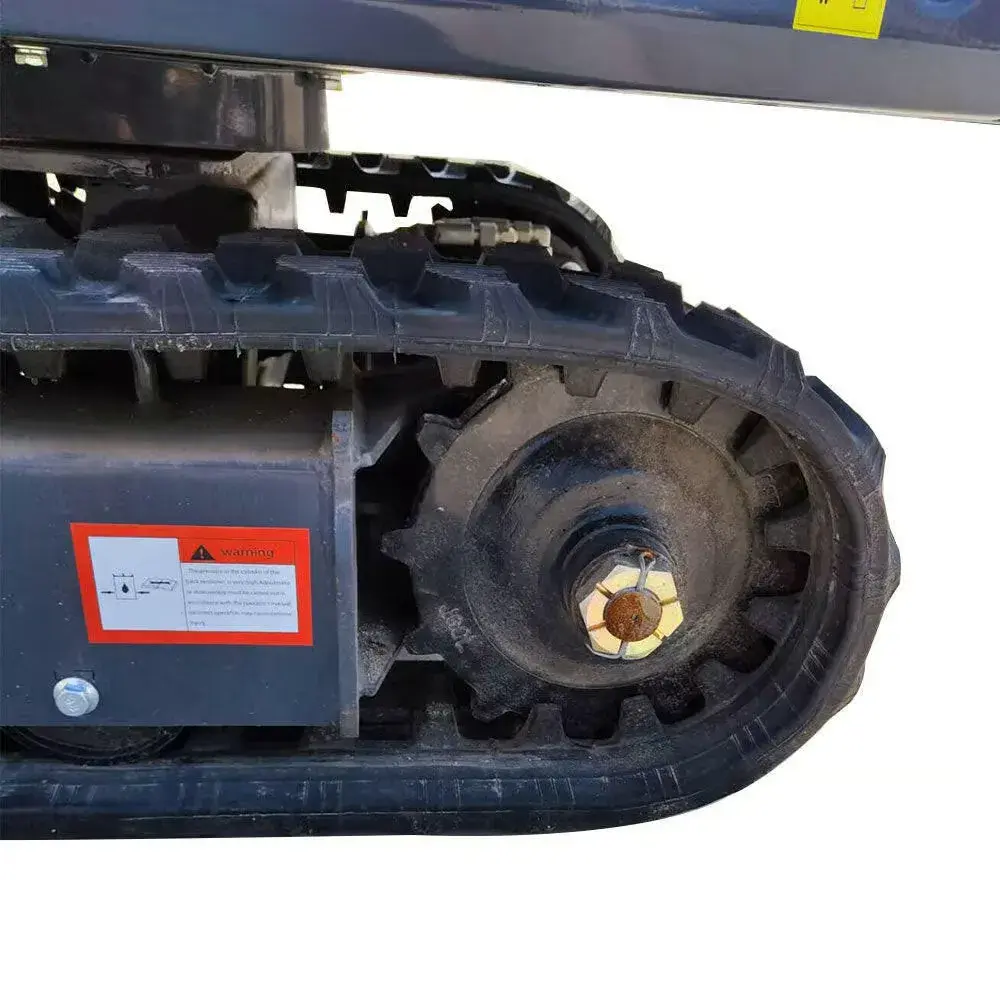

Rubber Tracks: Provide traction while helping reduce surface disturbance.
Gear-Pump Hydraulics: Deliver 17.6 L/min flow at 16 MPa working pressure.
30-Degree Climbing Ability: Supports operation across varied jobsite terrain within rated limits.

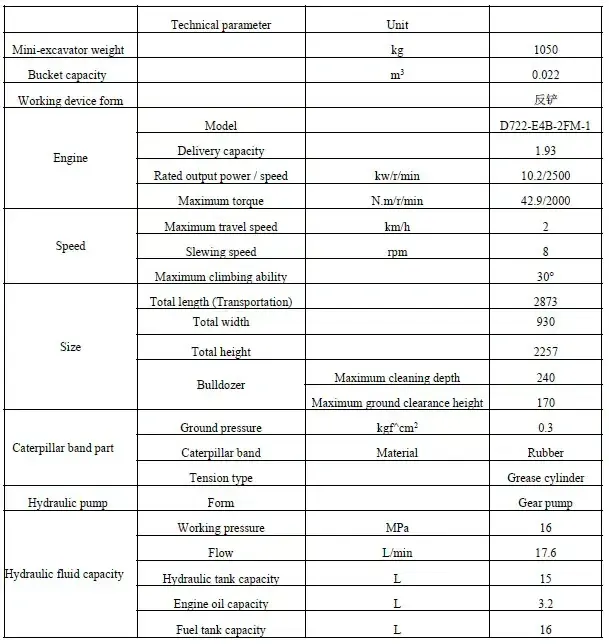

Technical Specifications
Specification | Details |
Brand | CFG Industrial |
Model | DY16 |
Operating Weight | 1,050 kg (2,315 lb) |
Bucket Capacity | 0.022 mÂł |
Working Device | Backhoe |
Engine | Kubota D722-E4B-2FM-1 diesel |
Rated Output | 10.2 kW at 2,500 RPM |
Maximum Torque | 42.9 N·m at 2,000 RPM |
Maximum Travel Speed | 2 km/h (1.24 mph) |
Slewing Speed | 8 RPM |
Maximum Climbing Ability | 30 degrees |
Transport Dimensions | 2,873 Ă— 930 Ă— 2,257 mm (113 Ă— 36.6 Ă— 88.9 in) with canopy |
Height Without Canopy | 2,025 mm (79.7 in) |
Maximum Digging Depth | 1,721 mm (67.8 in) |
Maximum Digging Height | 2,483 mm (97.8 in) |
Maximum Unloading Height | 1,738 mm (68.4 in) |
Maximum Digging Distance | 3,034 mm (119.4 in) |
Maximum Ground Reach | 2,938 mm (115.7 in) |
Hydraulic Pump | Gear pump |
Hydraulic Pressure and Flow | 16 MPa (2,320 PSI) / 17.6 L/min (4.65 GPM) |
Hydraulic Tank Capacity | 15 L |
Fuel Tank Capacity | 16 L |
Engine Oil Capacity | 3.5 L |
Blade Dimensions | 937 Ă— 210 mm (36.9 Ă— 8.3 in) |
Maximum Blade Lift | 170 mm (6.7 in) |
Maximum Blade Depth | 240 mm (9.4 in) |
Rubber Track Dimensions | 180 mm width Ă— 1,200 mm total length |
Delivery & Operating NoticeConfirm freight access, unloading requirements, transport dimensions, intended attachments, and hydraulic compatibility before ordering. Follow the operator manual, maintenance schedule, rated limits, and applicable jobsite safety requirements.30 Day Guarantee+This product includes a 30-day return or refund guarantee. Eligible claims may be submitted within 30 days of receiving the machine. Contact our support team for review and authorization.Shipping+Free freight shipping is included. Heavy-equipment deliveries require suitable site access and may require unloading equipment. Shipment details and delivery instructions will be provided after processing.Return Policy+
Inspect the machine promptly after delivery. Report damaged, defective, or incorrect equipment to customer service with supporting photographs.
Return authorization is required before sending machinery back. Our support team will confirm eligibility, documentation, instructions, and applicable freight charges.
