CFG-40UF 3.8-Ton Kubota Diesel Mini Excavator with Hydraulic Thumb and A/C
CFG-40UF 3.8-Ton Kubota Diesel Mini Excavator with Hydraulic Thumb and A/C - image 2
CFG-40UF 3.8-Ton Kubota Diesel Mini Excavator with Hydraulic Thumb and A/C - image 3
CFG-40UF 3.8-Ton Kubota Diesel Mini Excavator with Hydraulic Thumb and A/C - image 4
CFG-40UF 3.8-Ton Kubota Diesel Mini Excavator with Hydraulic Thumb and A/C - image 5

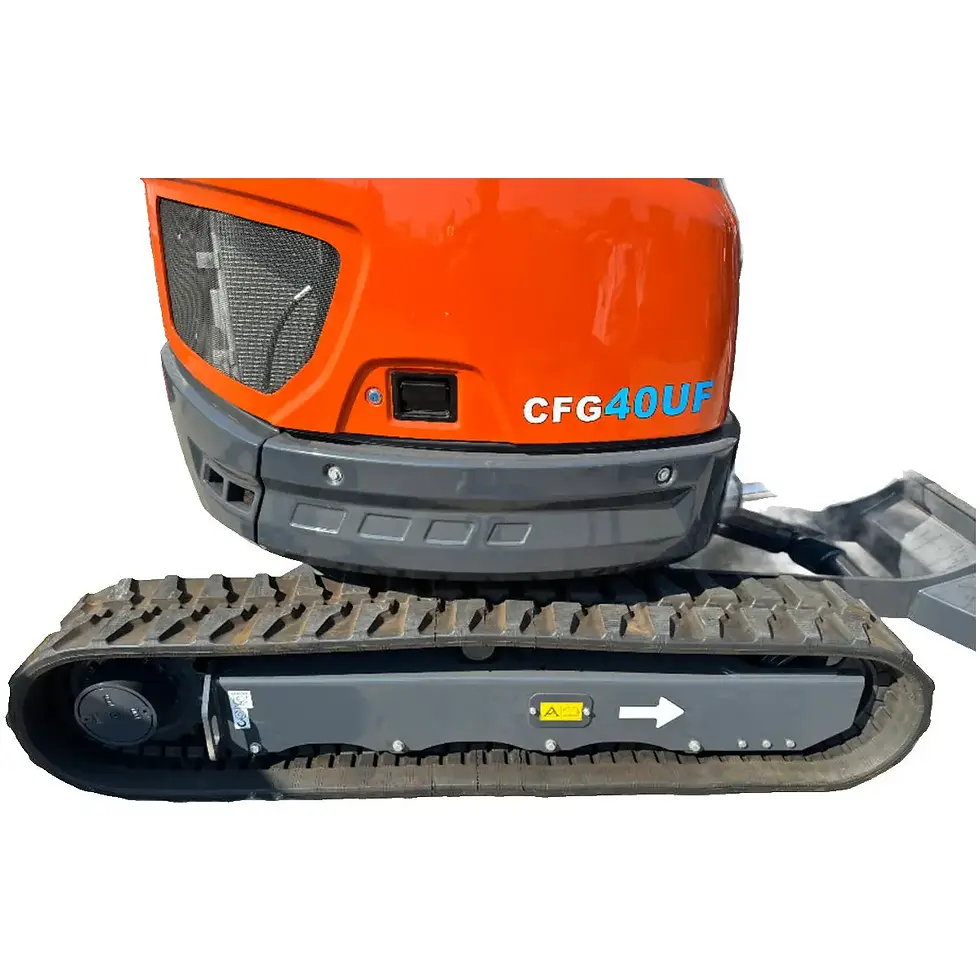

CFG-40UF 3.8-Ton Kubota Diesel Mini Excavator with Hydraulic Thumb and A/C - image 6
CFG-40UF 3.8-Ton Kubota Diesel Mini Excavator with Hydraulic Thumb and A/C - image 7
CFG-40UF 3.8-Ton Kubota Diesel Mini Excavator with Hydraulic Thumb and A/C - image 8
CFG-40UF 3.8-Ton Kubota Diesel Mini Excavator with Hydraulic Thumb and A/C - image 9
CFG-40UF 3.8-Ton Kubota Diesel Mini Excavator with Hydraulic Thumb and A/C

CFG-40UF 3.8-Ton Kubota Diesel Mini Excavator with Hydraulic Thumb and A/C

MAD 12,500.00 Regular Price
MAD 7,200.00Sale Price
After-Sale Service Package
Basic Support
Professional Setup & Training
Quantity

🛡️30-Day GuaranteeRefund or Exchange🚜24.4 HP Kubota Diesel3.8-Ton Working Class🚚Free Freight ShippingHeavy-Equipment Delivery

Kubota-Powered Digging Strength with Integrated Material Handling

The CFG-40UF combines commercial digging performance, precise pilot controls, and an integrated hydraulic thumb in a maneuverable 3.8-ton platform. Powered by a Kubota D1703-E4B diesel engine, this enclosed-cab excavator is designed for construction, utility installation, landscaping, agriculture, demolition cleanup, and demanding property-maintenance projects.

Key Highlights & Capabilities

  • Kubota D1703-E4B Diesel: Delivers 18.2 kW or 24.4 HP of dependable, water-cooled diesel performance.

  • Factory Hydraulic Thumb: Provides improved control when lifting logs, rocks, brush, demolition debris, and irregular materials.

  • 3,320 mm Digging Depth: Extended working range supports foundations, drainage systems, utilities, septic work, and commercial trenching.

  • 5,575 mm Ground Reach: Allows the operator to cover a larger working area with fewer machine movements.

  • Climate-Controlled Cab: Enclosed operator station with air conditioning supports productive operation in hot and challenging weather.

  • Hydraulic Pilot Controls: Low-effort joysticks deliver smooth multifunction operation and precise bucket positioning.

  • Side-Swing Boom: Supports offset digging alongside foundations, walls, fences, road edges, and other obstacles.

  • High-Pressure Hydraulic System: Delivers 67.2 L/min of flow at up to 24.5 MPa for responsive excavation and compatible hydraulic tools.

  • 35 mm Attachment Pins: Supports compatible buckets and tools using the specified 35 mm connection system.

  • Hydraulic Dozer Blade: Supports grading, backfilling, leveling, site cleanup, and excavator stabilization.

  • Jobsite Visibility: LED work lights and rearview mirror help improve awareness in low-light or restricted working areas.

Technical Specifications

Specification

Details

Model

CFG-40UF

Equipment Class

3.8-Ton Mini Excavator

Operating Weight

3,800 kg (8,377 lbs)

Engine

Kubota D1703-E4B Diesel

Rated Engine Output

18.2 kW (24.4 HP)

Engine Displacement

1,647 cc

Fuel Type

Diesel

Fuel Tank Capacity

40 L (10.6 gal)

Maximum Digging Depth

3,320 mm (130.7 in)

Maximum Digging Height

5,045 mm (198.6 in)

Maximum Dumping Height

3,520 mm (138.6 in)

Maximum Ground Reach

5,575 mm (219.5 in)

Overall Length

4,890 mm (192.5 in)

Overall Width

1,700 mm (66.9 in)

Overall Height

2,555 mm (100.6 in)

Track Specification

300 × 55 × 84 mm (W × P × L)

Hydraulic Flow Rate

67.2 L/min (17.75 GPM)

Hydraulic Pressure

24.5 MPa (3,553 PSI)

Hydraulic Tank Capacity

41 L (10.8 gal)

Dozer Blade Size

1,700 × 366 mm (66.9 × 14.4 in)

Blade Maximum Lift

336 mm (13.2 in)

Blade Maximum Drop

336 mm (13.2 in)

Attachment Pin Diameter

35 mm

Electrical System

12V

Operator Station

Enclosed Cab with Air Conditioning

Included Equipment

  • Factory hydraulic thumb

  • Standard digging bucket

  • Enclosed air-conditioned cab

  • Hydraulic front dozer blade

  • Pilot joystick controls

  • Side-swing boom

  • LED work lights and rearview mirror

  • Rubber crawler tracks

Configuration notice: This hydraulic-thumb configuration replaces the radio listed on some standard CFG-40U builds. Verify attachment pin dimensions and hydraulic requirements before installing additional tools.30 Day Guarantee+This product includes a 30-day refund or exchange guarantee beginning on the delivery date. Contact our support team within the eligibility period for claim instructions and return authorization.Shipping+

Orders are generally prepared for shipment within three working days after payment and order verification.

Free freight shipping is available within eligible service areas through our authorized distribution network. Typical delivery takes approximately 7–25 business days after dispatch.

The carrier will contact the recipient to coordinate delivery. Ensure the destination can safely accommodate a heavy-equipment freight vehicle.

Return Policy+

Inspect the excavator immediately after delivery. Incorrect, damaged, or defective shipments should be reported to customer service within seven days.

Return authorization and appropriate documentation must be obtained from our support team before returning machinery.

Approved returns are subject to applicable equipment-condition and freight terms. Original shipping charges, when applicable, are non-refundable.
